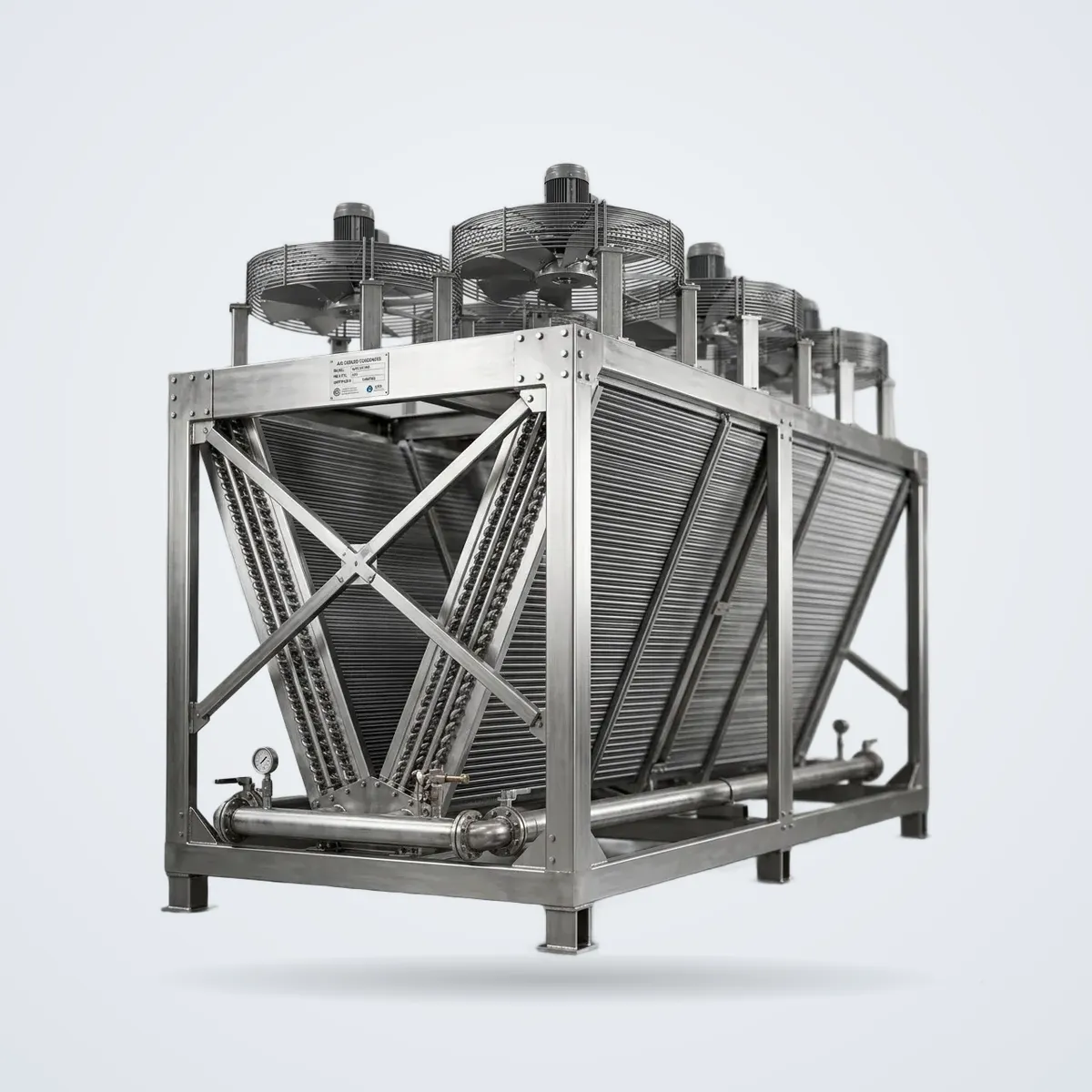

Air-Cooled Condenser

5 kW to 10,000 kW+ with zero water consumption

Air-cooled heat rejection for sites where water is scarce, expensive, or not worth the treatment burden.

Capacity: 5 kW to 10,000 kW+ heat rejection
Design ambient: Selected to site, up to 55 °C
Coil construction: Copper tube, aluminium fin
Fin spacing: 2.1–3.2 mm, wider pitch for dusty or sandy sites

Request a quote for this unit Talk to sales

Figures are indicative. Sizes, materials and duty are confirmed against your drawing and a site survey before quotation. Part of our Air-Cooled Condensers & Dry Coolers service line, so we supply, install and maintain it.

What it does

Rejecting heat directly to air removes make-up water, treatment, blowdown and legionella management entirely, in exchange for a larger footprint and more fan energy. On many Saudi sites that trade is worth making.

The design question is always the approach to ambient. Units are selected against the real design ambient for the site, up to 55 °C, and the resulting condensing temperature is stated rather than implied. Fin spacing is chosen for the site's dust and sand loading, because a tight fin pitch that blocks in six months is a false economy.

Specification

Air-Cooled Condenser specification
Capacity	5 kW to 10,000 kW+ heat rejection
Design ambient	Selected to site, up to 55 °C
Coil construction	Copper tube, aluminium fin
Fin spacing	2.1–3.2 mm, wider pitch for dusty or sandy sites
Coil rows	1–8
Fans	Axial, direct drive, optional EC motors and speed control
Refrigerants	Wide range, including low-GWP options

Materials of construction

Air-Cooled Condenser materials
Coil	Copper tube, aluminium fin
Fin coating	Bare aluminium, epoxy or hydrophilic
Casing	Galvanised steel, powder coated; stainless option
Fan motors	IP55 as standard
