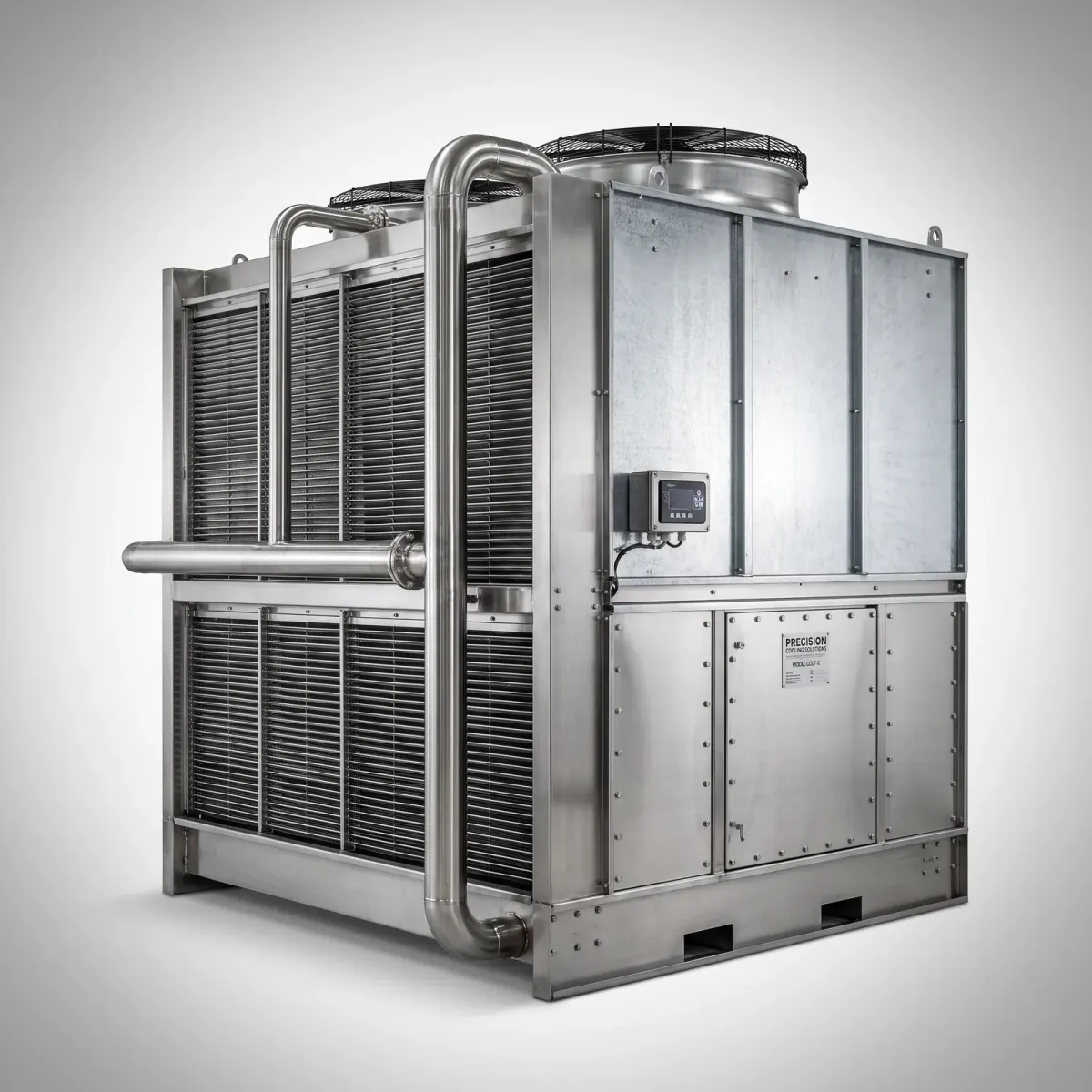

Closed-Circuit Cooling Tower

Sealed coil for water or glycol, 100–1,200 TR per cell

Sealed-coil towers for circuits that must stay clean: the process fluid never touches tower water, spray or air.

Nominal capacity: 100–1,200 TR per cell, multiple cells common
Configuration: Induced or forced draught, axial fan
Process fluid: Water, glycol mixtures, thermal oil
Design wet bulb: Selected to site, not a nominal rating

Request a quote for this unit Talk to sales

Figures are indicative. Sizes, materials and duty are confirmed against your drawing and a site survey before quotation. Part of our Evaporative Condensers & Cooling Towers service line, so we supply, install and maintain it.

What it does

The process fluid runs inside a coil while water is sprayed over its outside. Evaporative cooling happens on the coil surface, so the fluid gets the performance of an open tower while staying in a sealed loop, free of contamination, scale and fouling. Glycol circuits, chilled water serving critical plant, and any duty where fouling the process side would mean a shutdown belong in a closed circuit.

The trade is footprint and fan power. A closed-circuit tower is larger and draws more than an open tower of the same duty, because the heat has to cross a coil wall first.

Specification

Closed-Circuit Cooling Tower specification
Nominal capacity	100–1,200 TR per cell, multiple cells common
Configuration	Induced or forced draught, axial fan
Process fluid	Water, glycol mixtures, thermal oil
Design wet bulb	Selected to site, not a nominal rating
Fan drive	Direct or gearbox, VFD compatible

Materials of construction

Closed-Circuit Cooling Tower materials
Casing	Hot-dip galvanised steel or stainless
Coil	Continuous steel serpentine, galvanised after fabrication; copper or Cu-Ni on request
Basin	Galvanised or stainless, sloped to drain
Eliminators	Moulded PVC drift eliminators
