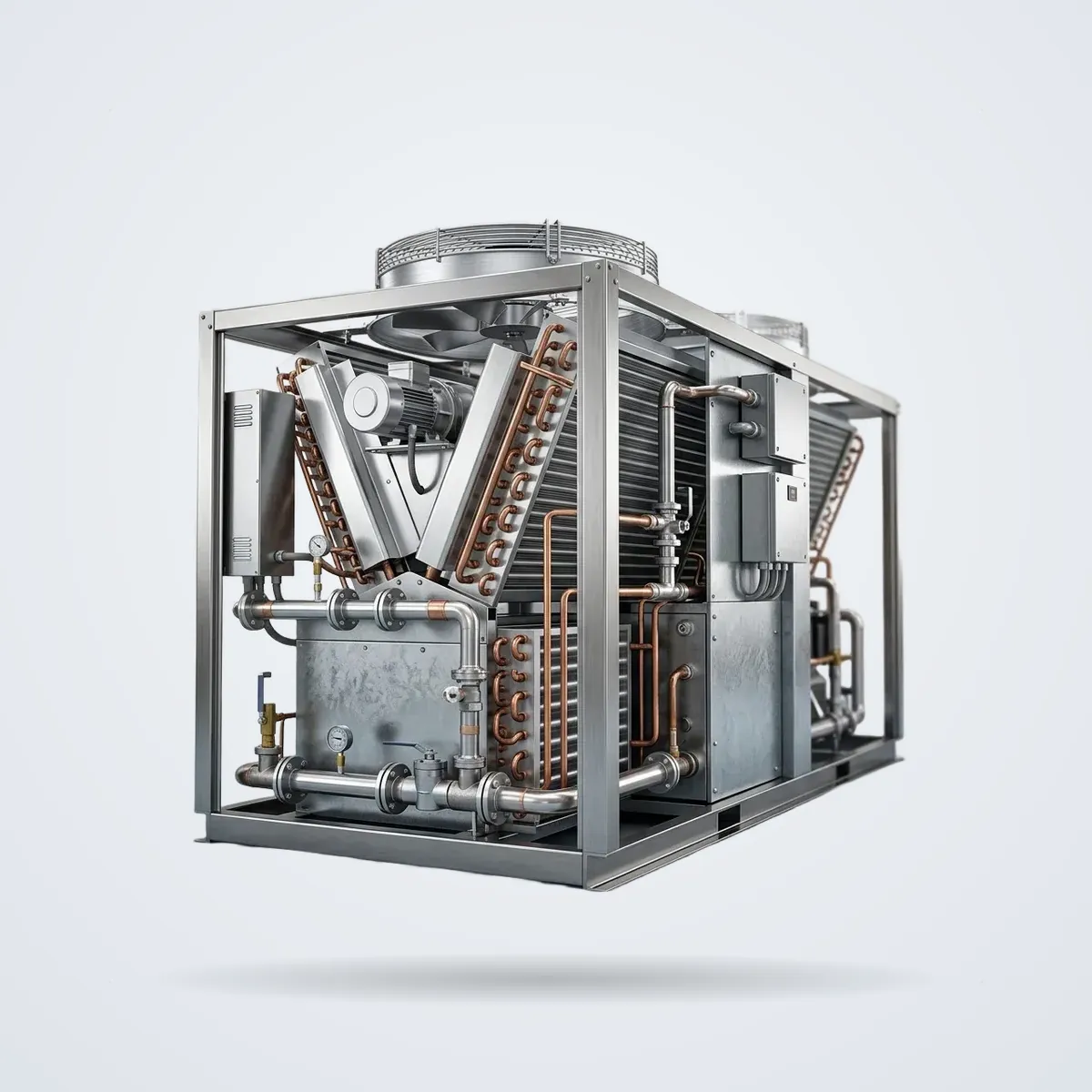

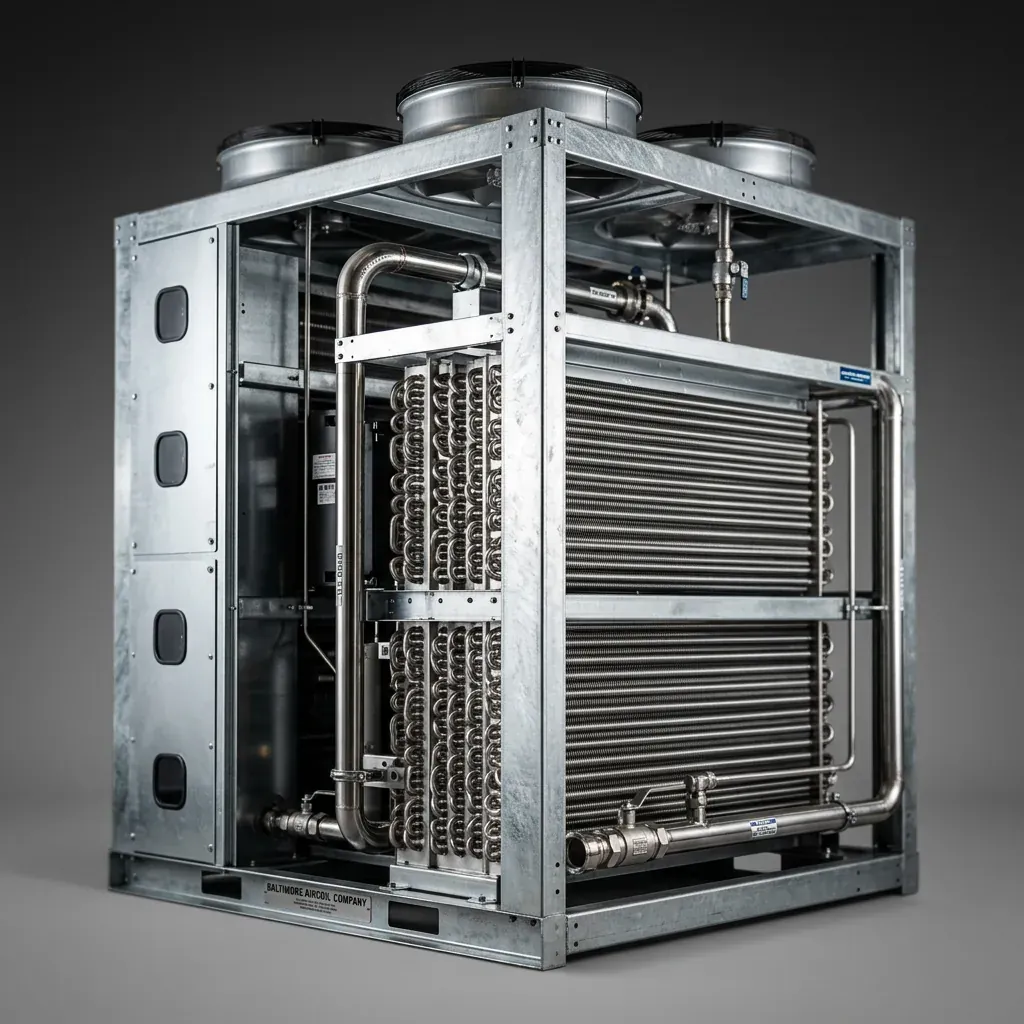

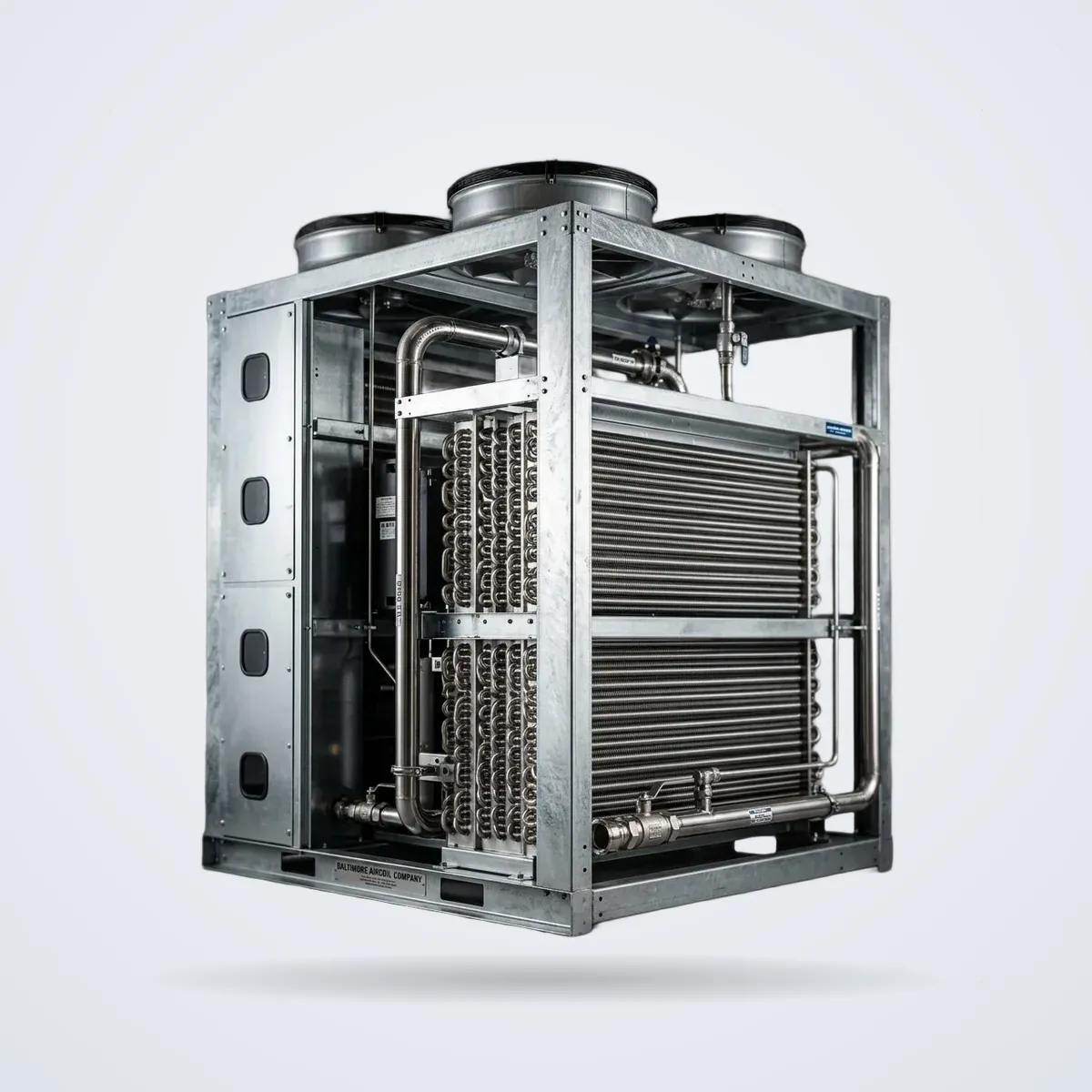

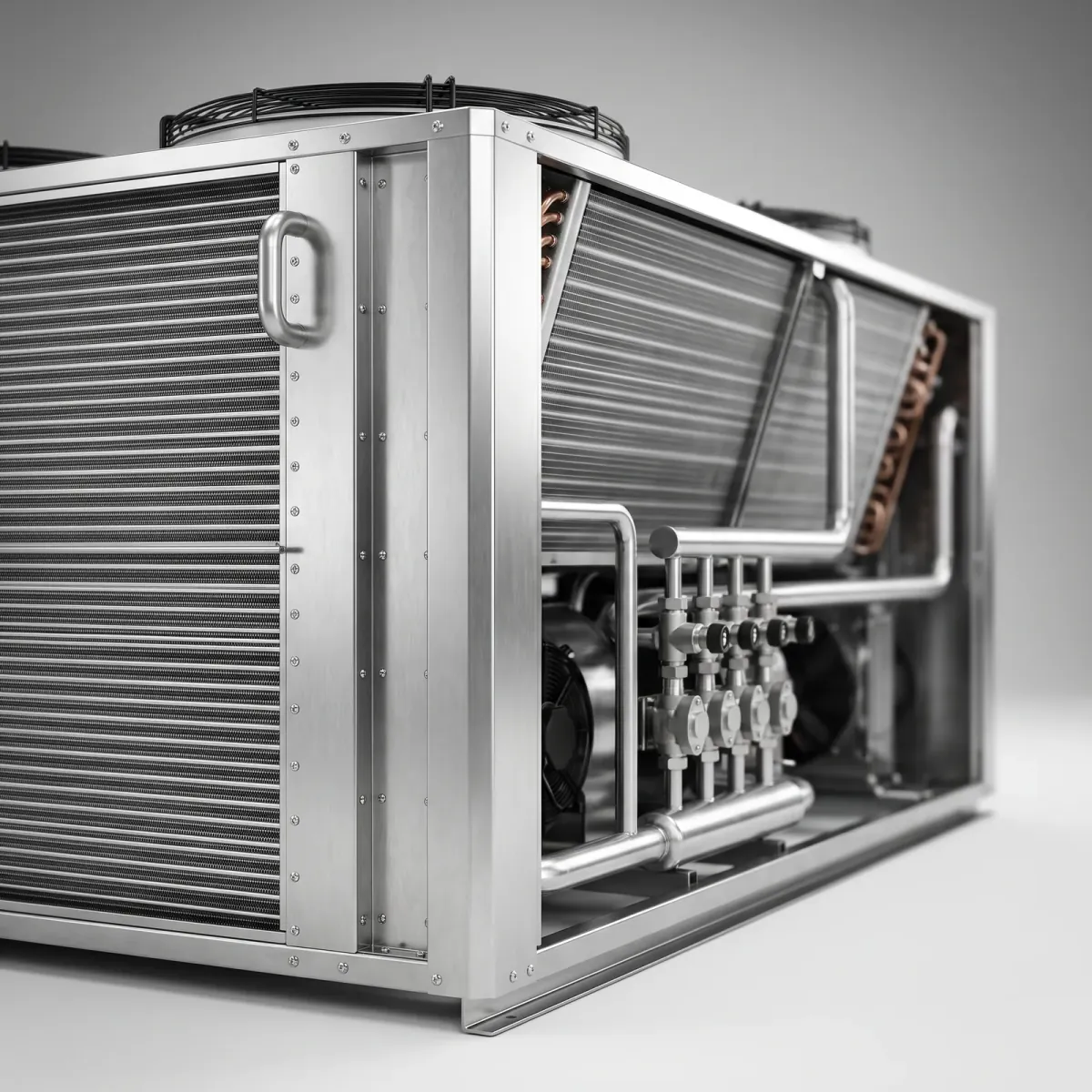

Evaporative Condenser

150–2,500 kW per unit for ammonia, HFC and HFO

Condensing at a lower temperature than air alone allows, on a fraction of the water a once-through system draws.

Heat rejection: 150–2,500 kW per unit
Refrigerants: Ammonia (R717), HFC and HFO blends
Configuration: Induced or forced draught
Fans: Axial, fixed or variable speed

Request a quote for this unit Talk to sales

Figures are indicative. Sizes, materials and duty are confirmed against your drawing and a site survey before quotation. Part of our Evaporative Condensers & Cooling Towers service line, so we supply, install and maintain it.

What it does

An evaporative condenser rejects refrigerant heat directly to a spray-wetted coil rather than through an intermediate water circuit. Removing that middle loop removes its approach temperature, so the plant condenses lower and the compressor works less for the same duty. On a Saudi summer day the difference is not marginal: sized against wet bulb rather than dry bulb, the design temperature can be around fifteen degrees lower, and compressor power follows condensing temperature closely.

The same water is recirculated. What is lost is what evaporates, plus a controlled bleed that holds dissolved solids down.

Specification

Evaporative Condenser specification
Heat rejection	150–2,500 kW per unit
Refrigerants	Ammonia (R717), HFC and HFO blends
Configuration	Induced or forced draught
Fans	Axial, fixed or variable speed
Design basis	Site wet bulb, not nominal
Bleed control	Conductivity-controlled

Materials of construction

Evaporative Condenser materials
Coil	Steel tube, hot-dip galvanised after fabrication; stainless option
Casing	Galvanised steel or stainless
Spray system	PVC headers with removable nozzles
Eliminators	Moulded PVC, three-pass
