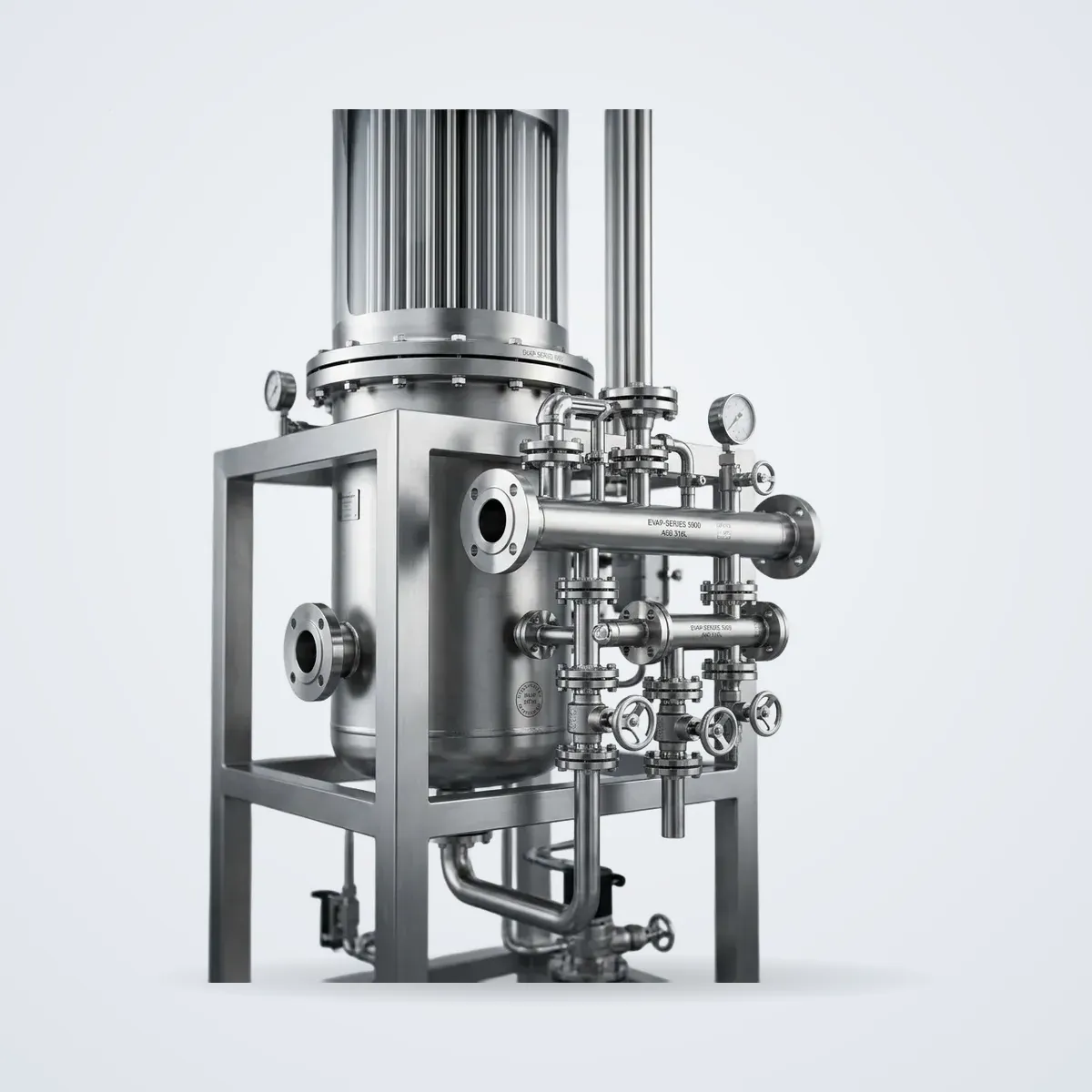

Industrial Evaporators & Unit Coolers
1 kW to 2,000 kW+ cooling on chilled water, brine or DX
Evaporators for refrigeration, food processing and chemical duty, each designed around a specific load, temperature and flow.
- Duty range
- 1 kW to 2,000 kW+ cooling
- Fluids
- Chilled water, brine, refrigerant
- Configurations
- Unit coolers, shell and tube, plate
- Coil materials
- Copper / aluminium, stainless steel
Figures are indicative. Sizes, materials and duty are confirmed against your drawing and a site survey before quotation. Part of our Shell & Tube Heat Exchangers service line, so we supply, install and maintain it.
What it does
The range covers chilled-water and brine coolers, shell and tube and plate evaporators, and air unit coolers. Coil, fin and material choices follow the operating conditions, refrigerant and hygiene requirements, with defrost options for low-temperature rooms.
Specification
| Duty range | 1 kW to 2,000 kW+ cooling |
|---|---|
| Fluids | Chilled water, brine, refrigerant |
| Configurations | Unit coolers, shell and tube, plate |
| Coil materials | Copper / aluminium, stainless steel |
| Defrost | Electric, hot gas, water or off-cycle |
Materials of construction
| Coils | Copper tube, aluminium fin; stainless option |
|---|---|
| Casing | Galvanised or stainless 304 steel |
Where it fits
- Refrigeration and cold storage
- Food and beverage processing
- Chemical and pharmaceutical process cooling
- Ice thermal storage and chilled water
- Industrial HVAC cooling coils
Options and accessories
- Food-grade, hygienic construction
- Corrosion-resistant materials
- Defrost packages for low-temperature duty
Related equipment
From the same range, and the plant it usually works alongside.
Heat Exchangers

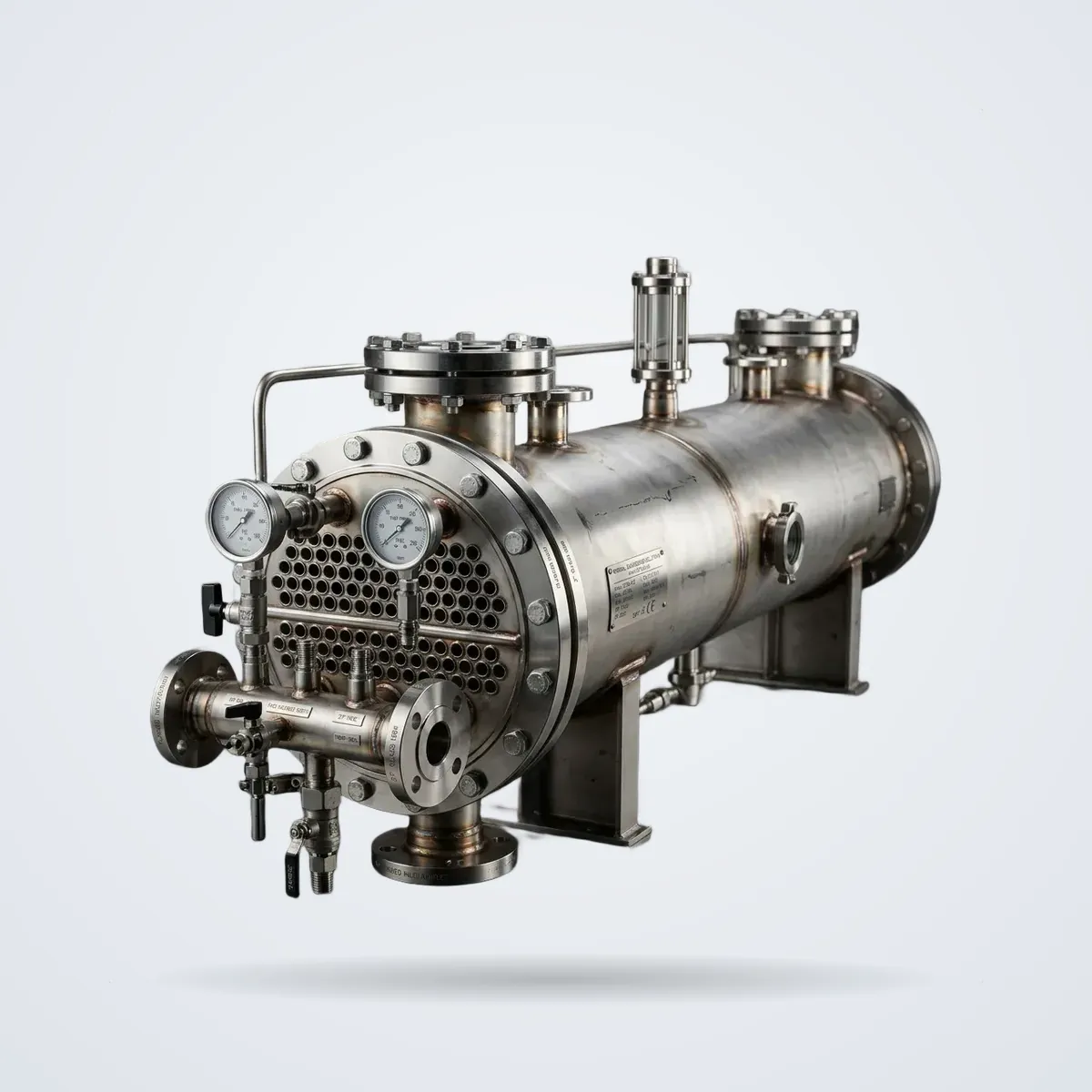

Shell & Tube Heat Exchanger
