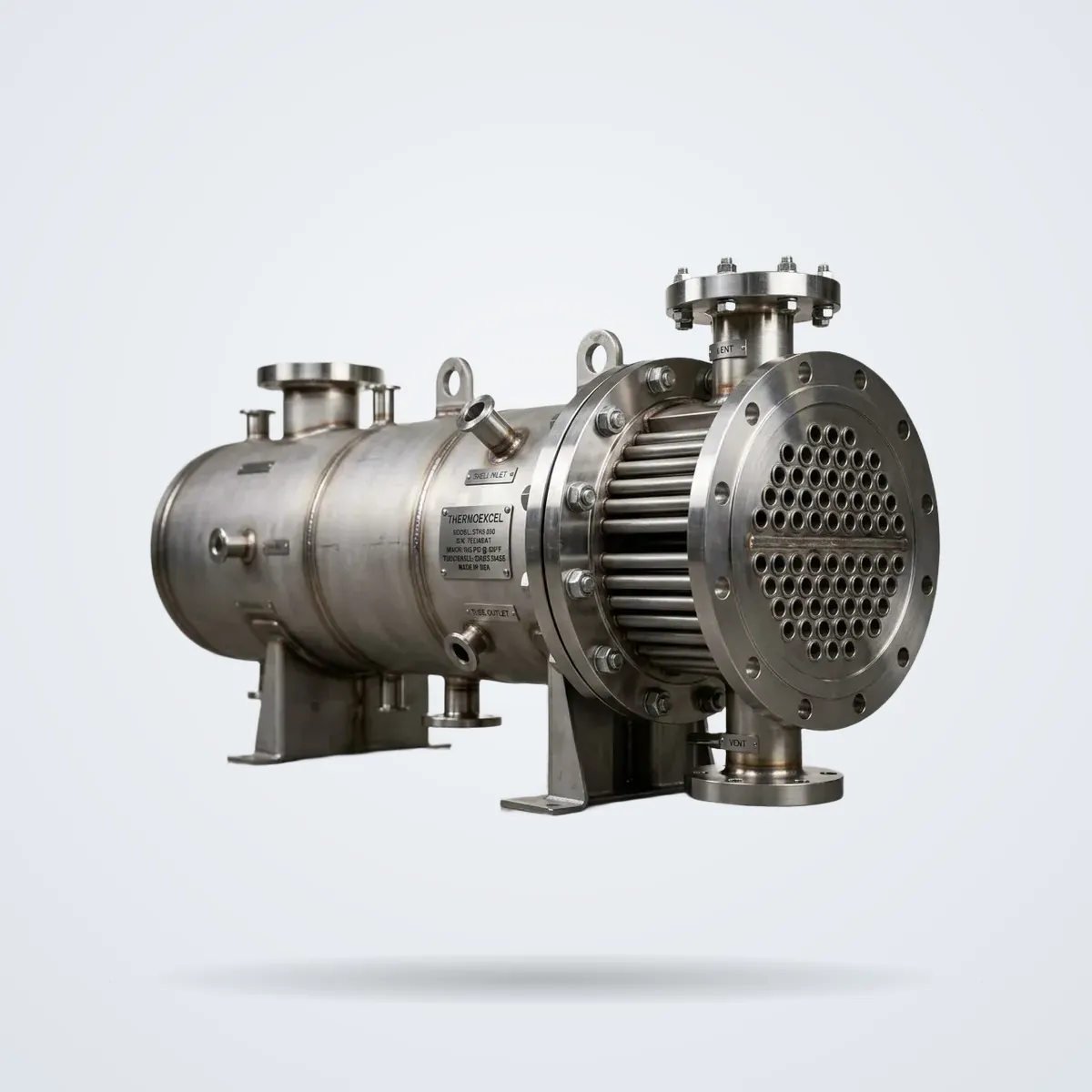

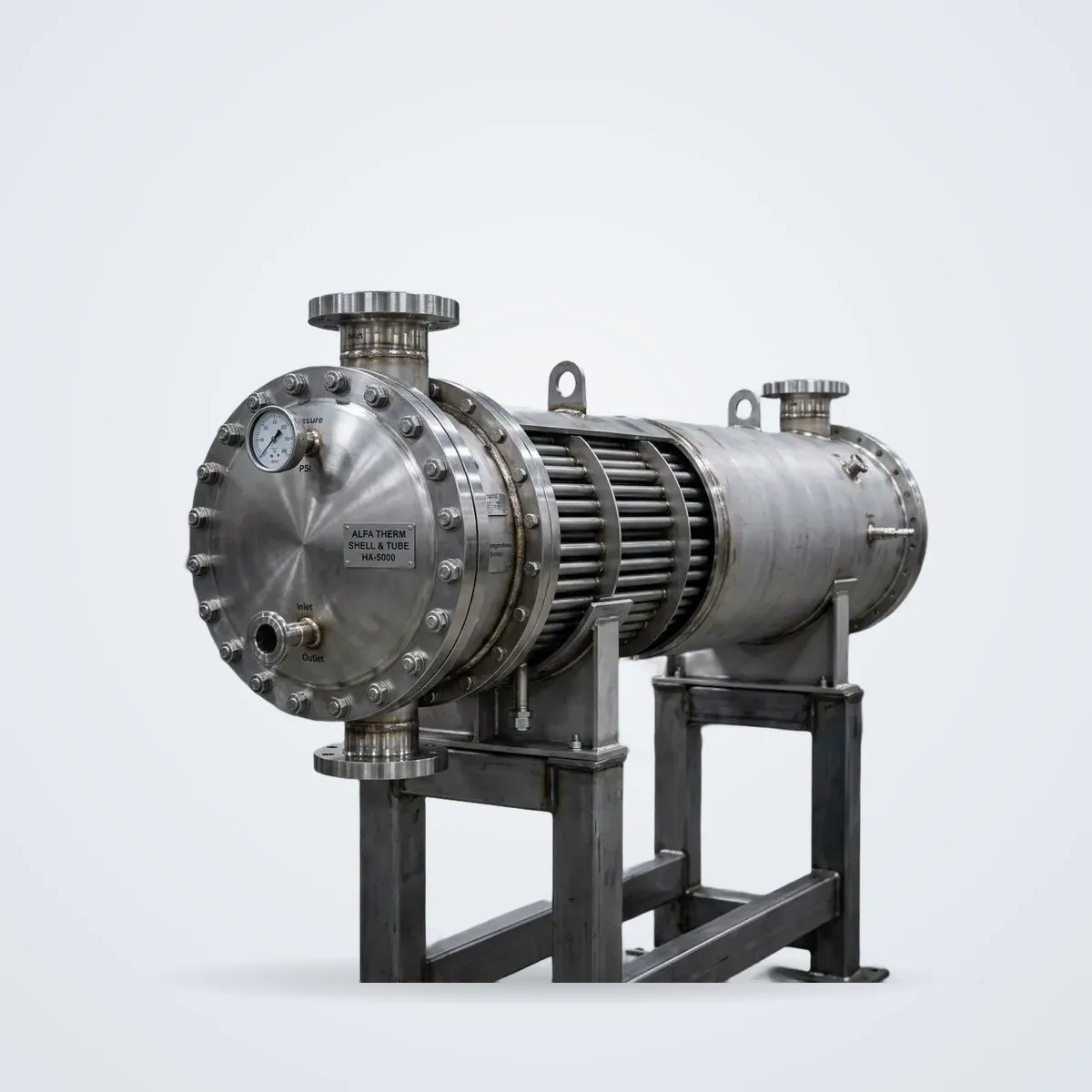

Shell & Tube Heat Exchanger

TEMA and ASME VIII design, fabrication and re-tubing

Custom-engineered shell and tube exchangers for process duty, from thermal design through fabrication, pressure testing and field re-tubing.

Design codes: TEMA Class R, C and B; ASME VIII Div. 1; EN 13445 and API 660 on request
Shell diameter: 150–1,500 mm
Tube length: Up to 6,000 mm
Design pressure: Up to 40 bar, shell and tube side

Request a quote for this unit Talk to sales

Figures are indicative. Sizes, materials and duty are confirmed against your drawing and a site survey before quotation. Part of our Shell & Tube Heat Exchangers service line, so we supply, install and maintain it.

What it does

Each unit is sized around the duty: flow rates, inlet and outlet temperatures, allowable pressure drop and fouling factors, rather than the nearest standard unit and a hope that the margin covers the difference. Fabrication is in-house, which is also what makes re-tubing viable: where a shell is sound and only the bundle has failed, re-tubing returns the unit to full duty at a fraction of the cost and lead time of new plant.

Every unit is hydrostatically tested before it leaves, and witness testing is available on request.

Specification

Shell & Tube Heat Exchanger specification
Design codes	TEMA Class R, C and B; ASME VIII Div. 1; EN 13445 and API 660 on request
Shell diameter	150–1,500 mm
Tube length	Up to 6,000 mm
Design pressure	Up to 40 bar, shell and tube side
Design temperature	−20 °C to 400 °C; higher duties reviewed case by case
Configurations	Fixed tubesheet, U-tube, floating head
Testing	Hydrostatic at 1.5 × design pressure, NDT to specification

Materials of construction

Shell & Tube Heat Exchanger materials
Shell	Carbon steel; stainless option
Tubes	Carbon steel, stainless 304/316L, copper, cupro-nickel 90/10, titanium
Tube sheets	Carbon or stainless steel
Tube joints	Expanded, seal-welded where the duty requires
